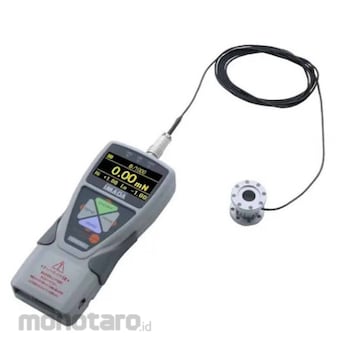

IMADA High-performance built-in torque meter HTGA-TFX series

High-speed sampling (2000Hz) follows sudden load changes, achieving high reproducibility for both peak values and continuous data.
The bright and easy-to-read OLED display is split into three sections, allowing you to display your preferred measurement parameters.
The sensor is secured with screw holes at the top and bottom, making it ideal for incorporating into equipment.
The small sensor allows measurements to be taken in a small space.
By using a goniometer (sold separately), you can measure angles, as well as connect a USB memory stick and detect the 1st and 2nd peaks, which are additional functions unique to high-performance models.
This is a high-performance built-in torque meter that can measure torque from 500 N-cm (5 N-m) to 1000 N-cm (10 N-m). It is incorporated into torque testing machines and production line torque control systems for measurements. In addition to the standard model (HTGS-TFX series)'s high measurement repeatability through high-speed sampling and diverse data output methods, it also features angle input/output and the ability to connect to a USB memory stick. The Next series, with firmware version 5 or later, offers improved measurement stability through reduced noise and expandability through the addition of firmware updates and the ability to download various service software from a dedicated website.
