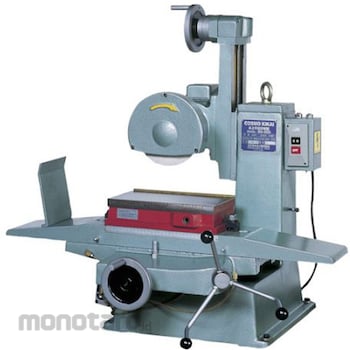

COSMO KIKAI Benchtop surface grinder SG-300 type

Sebelum PPN:
Rp229.999.900
Spesifikasi
AS ONE Part Number67-5521-06

Pilih jenis produk yang diinginkan

Nomor SKU Model Number Masa Persiapan Barang Harga Jumlah
Loading...
ask-button

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description
It is a one-piece cast structure that has been thoroughly studied from a dynamic standpoint. It is low noise due to the direct connection of the grinding wheel spindle and motor. The table is moved using a rack and pinion drive system. A sliding surface lubricating oil pump is standard equipment, allowing lubricating oil to reach every corner of the machine.
Feature
Specification
*Width (mm): 930 *Depth (mm): 760 *Height (mm): 850 *Power supply (V): Single-phase 100 *Output (W): 550 *Table working area: 300 x 150 mm *Table travel distance: 320 x 170 mm *Grinding wheel dimensions (diameter x width x bore diameter): 180 x 13 x 31.75 mm *Distance between table top and grinding wheel axis: Maximum 280 mm, minimum 89 mm *Grinding wheel rotation speed: 3500 rpm (60 Hz), 2900 rpm (50 Hz) *Stand not included *Country of origin: Japan *Code number: 368-5788
