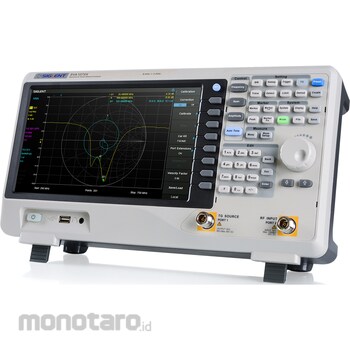

Siglent Spectrum analyzer SVA1000X series (1.5G/3.2G/7.5GHz, minimum RBW 1Hz)

[Multifunctional Spectrum Analyzer] Standard equipped with spectrum analysis and vector network analysis. Optional EMI pre-compliance testing, fault location detection, and modulation analysis can be added to a single unit. Widely used in research and development, education, and manufacturing. [High-Performance Signal Measurement] DANL < -165 dBm/Hz, phase noise -98 dBc/Hz@10kHz offset, minimum RBW 1Hz. Supports high-precision frequency response measurement, EMI testing, and modulation analysis. [Wideband Frequency Analysis] Maximum frequency range 1.5 to 7.5GHz, vector network analysis 100kHz to 7.5GHz compatible. An ideal RF test solution for antenna measurement, cable characteristic evaluation, and high-frequency signal analysis. [Intuitive Operation and Remote Control] Equipped with a touch display. An efficient measurement environment can be created with remote control via SCPI commands.
Since it measures frequency distribution and power simultaneously, it can measure a wide range of subjects, including harmonics, unwanted radiation, modulation, distortion, and phase noise. Its main applications include measuring and inspecting bandwidth, noise, harmonic distortion, and unwanted radiation (EMI) in broadcasting equipment such as televisions, mobile phones, radios, and communication equipment.
*Instruction manual: Can be downloaded from the manufacturer's official website *Warranty: As a genuine domestic product, a 3-year warranty applies to the main unit and a 1-year warranty applies to accessories *Calibration: Costs vary depending on the model. Please inquire on the manufacturer's official website for details *Calibration is available with a set of 3 calibration documents *Certificate of non-applicability: Please inquire on the manufacturer's official website for details
