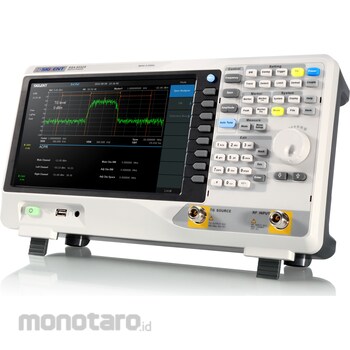

Siglent Spectrum analyzer SSA3000X series (2.1G/3.2GHz, minimum RBW 0.01Hz, -110dBc/Hz (typical) @1GHz, 20kHz offset)

[Wideband Spectrum Analyzer] Supports frequency ranges of 2.1GHz/3.2GHz. A high-performance signal analyzer ideal for research and development, wireless communication, and antenna measurement. [High Sensitivity and High Accuracy Measurement] Displayed average noise level -161dBm/Hz, phase noise -98dBc/Hz (@1GHz, 10kHz offset), total amplitude accuracy ±0.7dB. Supports small signal and high frequency analysis. [Built-in Tracking Generator] Filter characteristic measurement, insertion loss measurement, (cable VSWR/return loss analysis is optional) are all possible with a single unit. Ideal for RF testing and transmission characteristic evaluation. [Multifunctional Analysis Support] CHP, ACPR, OBW, TOI, CNR, harmonic analysis, and spectrum monitor functions are available as options. Supports automation of EMI pre-compliance testing with PC software EasySpectrum.
Since it measures frequency distribution and power simultaneously, it can measure a wide range of subjects, including harmonics, unwanted radiation, modulation, distortion, and phase noise. Its main applications include measuring and inspecting bandwidth, noise, harmonic distortion, and unwanted radiation (EMI) in broadcasting equipment such as televisions, mobile phones, radios, and communication equipment.
*Instruction manual: Can be downloaded from the manufacturer's official website *Warranty: As a genuine domestic product, a 3-year warranty applies to the main unit and a 1-year warranty applies to accessories *Calibration: Costs vary depending on the model. Please inquire on the manufacturer's official website for details *Calibration is available with a set of 3 calibration documents *Certificate of non-applicability: Please inquire on the manufacturer's official website for details
