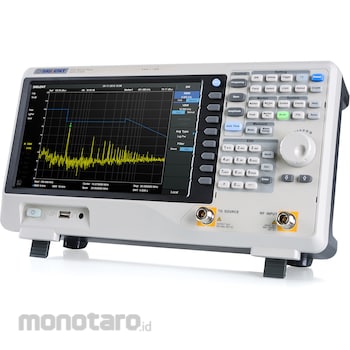

Siglent Spectrum analyzer SSA3000X Plus series (2.1G/3.2G/7.5GHz, minimum RBW 1Hz)

(Wideband & High Performance)Frequency range 9kHz to 2.1/3.2/7.5GHz, minimum RBW 1Hz, DANL -165dBm/Hz, phase noise <-98dBc/Hz. Ideal for research and development, education, production lines, maintenance, and EMI testing. (Ease of Use & Standard Functions)Equipped with a 10.1-inch touchscreen. Standard features include preamplifier, tracking generator (TG), remote control (USB/LAN/SCPI), PC software "EasySpectrum," and web server functionality. (Diverse Measurement & Analysis)Transmission characteristic measurement, VSWR/return loss measurement (optional directional coupler compatible). Supports extended measurement kits for CHP, ACPR, OBW, CNR, harmonics, TOI, etc. Also supports modulation analysis of AM/FM, ASK/FSK/PSK/QAM. (EMI Pre-Compliance)By adding the optional EMI pre-compliance test kit, EMI measurement compliant with the CISPR16 standard is possible. Combine with peripheral equipment such as near-field probes, LISNs, and antennas to efficiently detect interference sources and evaluate EMI.
Since it measures frequency distribution and power simultaneously, it can measure a wide range of subjects, including harmonics, unwanted radiation, modulation, distortion, and phase noise. Its main applications include measuring and inspecting bandwidth, noise, harmonic distortion, and unwanted radiation (EMI) in broadcasting equipment such as televisions, mobile phones, radios, and communication equipment.
*Instruction manual: Can be downloaded from the manufacturer's official website *Warranty: As a genuine domestic product, a 3-year warranty applies to the main unit and a 1-year warranty applies to accessories *Calibration: Costs vary depending on the model. Please inquire on the manufacturer's official website for details *Calibration is available with a set of 3 calibration documents *Certificate of non-applicability: Please inquire on the manufacturer's official website for details
