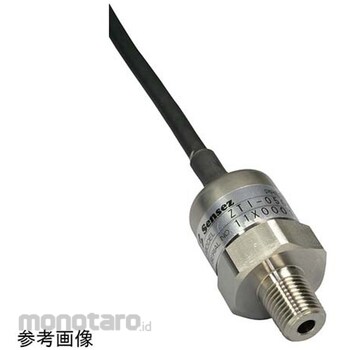

Senses Pressure sensor 4-20mADC ZTI series

*Rated pressure: 50kPa *Pressure type: Gauge pressure *Overpressure: 150% of rated pressure *Cable length: 2m *Material of wetted parts *Diaphragm: Titanium *Pressure port: Titanium *O-ring: Fluororubber (standard) *Sealing fluid: Silicone oil *Power supply: 12-28VDC *Output: 4-20mADC *Load resistance: 600Ω or less (at DC24V power supply) *Response: 5msec or less *Temperature characteristics: ±0.05%FS or less (0-60°C) *Compensated temperature range: 0-60°C *Operating temperature range: -10-80°C (no freezing) *Operating humidity range: 35-85%RH (no condensation) *Pressure connection port: R1/4 *Cable DIA6 vinyl: 500mm/2000mm (standard) Shielded + atmospheric vent pipe *Structure: IP65 *Insulation resistance: 100MΩ or more/500VDC *Withstand voltage: 500VAC 1 minute * Earthquake resistance: 98.1/s2 2 hours (XYZ directions) * Weight: Approx. 120g * Effect of mounting position: +0.3%FS * *Lead time is an estimate and may vary depending on the material status. * *Please contact us separately if you wish to change the cable length. *Please contact us separately if you wish to change the O-ring.
