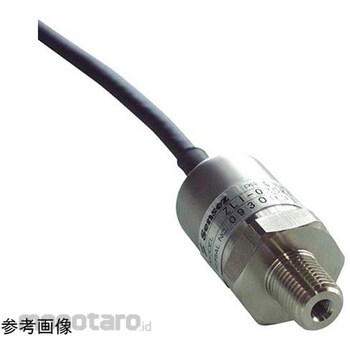

Senses Pressure Sensor 1 to 5VDC ZLV Series

*Rated pressure: 50kPa *Pressure type: Gauge pressure *Overpressure: 200% of rated pressure *Cable length: 2m *Wetted parts material *Diaphragm: Titanium *Pressure port: Titanium *Sealing fluid: Silicone oil *Applicable medium: Gas and liquid (that does not harm the wetted parts material) *Power supply: 12-28VDC *Output: 1-5VDC *Current consumption: 6mA or less *Load resistance: 1kΩ or more *Response: 5msec or less *Accuracy: ±0.5%FS or less *Temperature characteristics: ±0.05%FS or less (0-60°C) *Compensated temperature range: 0-60°C *Operating temperature range: -20 to 80°C (non-freezing) *Measurement medium temperature: -20 to 100°C (non-freezing) *Operating humidity range: 35-85%RH (non-condensing) *Pressure connection port: R1/4 *Cable DIA6 vinyl: 500mm/2000mm (standard) Shielded + atmospheric vent pipe * Structure: IP65 * Insulation resistance: 100MΩ or more / 500VDC * Withstand voltage: 500VAC 1 minute, Vibration resistance: 98.1/s2 2 hours (XYZ direction) * Weight: Approx. 140g * Effect of mounting position: +0.5%FS * *Lead time is an estimate and may vary depending on the material situation. * *Please contact us separately if you wish to change the cable length.
