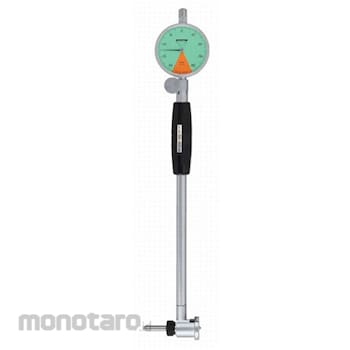

Peacock Cylinder gauge 35-60 CC-2H

Sebelum PPN:
Rp4.699.900

Pilih jenis produk yang diinginkan

Nomor SKU Model Number Masa Persiapan Barang Harga Jumlah
Loading...
ask-button

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description
The new circular guide plate makes it easier to find the minimum inner diameter. The head of the main body is now an integrated structure, further improving durability. The conductor (cam) has an adjustment mechanism, achieving high precision.
Feature
*Size: 251.5mm total length *Measurement range: 35-60mm *Recommended dial gauges: 17Z, 57B, 15Z, 5F *Effective measurement range: 1.2mm *High-range accuracy: 5μm *Adjacent error: 2μm *Repeatability: 2μm *Replacement rod spacing: 5 increments of 6mm *Replacement washer thickness: 1, 2, 3mm x 1mm *Grip length: 150mm *[Notes] *Dial gauge is not included *Code number: 119-0168513
