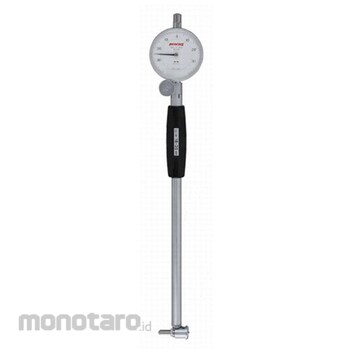

Peacock Cylinder Gauge 18-35 CC-1H

Sebelum PPN:
Rp5.099.900

Pilih jenis produk yang diinginkan

Nomor SKU Model Number Masa Persiapan Barang Harga Jumlah
Loading...
ask-button

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description
The new circular guide plate makes it easier to find the minimum inner diameter. The head of the main body is now an integrated structure, further improving durability. The conductor (cam) has an adjustment mechanism, achieving high precision.
Feature
*Size: 248.75mm total length *Measurement range: 18-35mm *Recommended dial gauges: 17Z, 57B, 15Z, 5F *Effective measurement range: 1.2mm *Wide range accuracy: 5μm *Adjacent error: 2μm *Repeatability: 2μm *Replacement rod spacing: 9mm in increments of 2 *Replacement washer thickness: 0.5.1mm x 1 *Grip length: 150mm *[Notes] *Dial gauge is not included *Code number: 119-0168512
