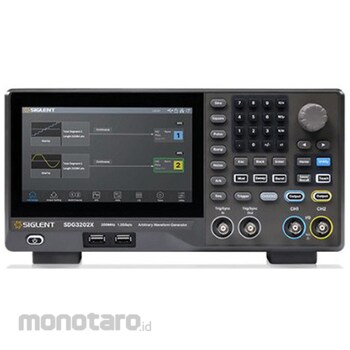

Siglent Arbitrary Waveform Generator/Function Generator SDG3000X Series (2ch, 40M/80M/200MHz, 1.2GS/s, 16bit, 40M)

[High-Resolution 16-bit, Maximum 200MHz Output] With a maximum output frequency of 200MHz, 1.2GSa/s sampling, and 16-bit vertical resolution, even minute signal changes are reproduced with high precision. Ideal for B2B applications where precision is required, such as research and development, evaluation testing, and quality verification. [Large Capacity 40Mpts Arbitrary Waveform Memory] Equipped with 196 built-in arbitrary waveforms and a memory depth of up to 40Mpts per channel. Complex waveforms and long-duration signals can be faithfully generated, making it effective for custom testing and repeated testing. [Dual Pulse, PRBS, and Diverse Modulation Support] Supports double pulse output, effective for IGBT and SiC MOSFET evaluation. Supports PRBS signals up to 120Mbps and various modulation methods such as AM/FM/PM/FSK/PSK/PWM, making it widely applicable to power semiconductor and communication evaluation. [High-Fidelity, Low-Jitter Signal Output] EasyPulse and TrueArb technologies achieve minimum 8ns pulses, ultra-low jitter (minimum 150ps), and THD of 0.075% or less. It is suitable for high-speed switching circuits and high-precision analog evaluation.
Capable of oscillating from an ultra-low frequency band, it is widely used as a signal source for low-frequency experiments and measurements in a wide range of fields such as electrical/electronics, machinery, and chemistry.
*Instruction manual: Can be downloaded from the manufacturer's official website *Warranty: As a genuine domestic product, a 3-year warranty applies to the main unit and a 1-year warranty applies to accessories *Calibration: Costs vary depending on the model. Please inquire on the manufacturer's official website for details *Calibration is available with a set of 3 calibration documents *Certificate of non-applicability: Please inquire on the manufacturer's official website for details
