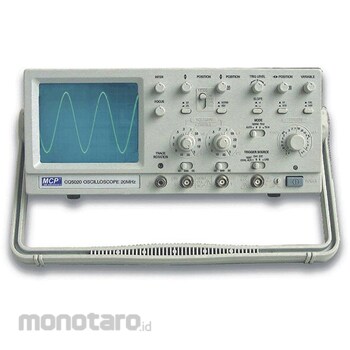

MCP Analog oscilloscope CQ series

[CRT] Type: 6 ′′ rectangle, internal scale: 0%, 10%, 90%, 100% mark, display area: 8 x 10DIV (1DIV = 10mm), acceleration voltage: 1.9kV, brightness and focus: front Adjustable continuously on the panel, Trace rotation: Adjusted on the front panel, [Vertical system] Sensitivity and accuracy: 5mV / DIV to 20V / DIV ± 3%, 1mV / DIV to 2mV / DIV ± 5%, 1-2- 12 calibration steps in 5 sequences, CH1 only x 5MAG, trimming ratio:> = 2.5: 1, band width (-3dB): DC (AC10Hz) to 20MHz, rise time: <= 17.5ns, input impedance: about 1MΩ ± 3% 30pF ± 5pF, Input coupling: AC, DC, GND, Maximum input voltage: 400V (DC + AC peak) below 1kHz, Vertical mode: CH1, CH2, DUAL (CHOP, ALT) ADD, CH2inverse, CH1 signal Output: 25mV / DIV 50Ω 20Hz ~ 10MHz (-3dB), [Horizontal system] Sweep time: 0.2μs ~ 0.2s / DIV1-2-5 sequence with 19 steps, Sweep accuracy: x 10MAG with ± 3%, ± 5%, trimming Ratio:> = 2.5: 1, Sweep magnification: x 10 MAG, Maximum sweep time: 20nS / DIV, [Trigger system] Mode: AUTO, NORM, TV, Source: VERT-MODE, CH1, EXT, LINE, Combined: AC, Polarity: "+" and "-", [Trigger sensitivity] INT: 0.5DIV (10Hz-10MHz), 1.5DIV (10MHz-20MHz), 1.5DIV (20MHz-30MHz), [EXT] 0.2 (10Hz-10MHz), 0.8DIV (10MHz to 20MHz), 0.2DIV (20MHz to 30MHz), TV synchronization pulse 1DIV or 1V (EXT), [External trigger input] Input impedance: 1MΩ ± 3% 25pF ± 5pF, Maximum input voltage: 400V, [x -Y operation] Input: X-axis / CH1, Y-axis / CH2, Sensitivity and accuracy: 5mV to 20V / DIV ± 3%, 1mV / DIV to 2mV / DIV ± 5%, [Band width (-3dB)] X Axis: DC to 500kHz, [Phase difference] <= 3 ° (DC to 50kHz), [Z axis] Sensitivity: 5V, Polarity: Negative input increases intensity, Input impedance: 20kΩ to 30kΩ, usable Frequency range: DC to 2MHz, maximum input voltage: 30V (DC + AC peak)
