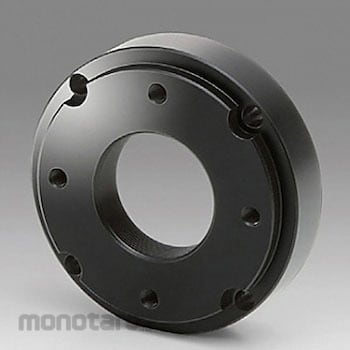

SIGMAKOKI Laser Beam Expander Adapter

This adapter is for fixing the laser beam expander to the 5-axis lens holder (ALHN-50-5RO) with centering mechanism. It can be used with all BE/LBED/LBE beam expanders. It can be attached to various mirror holders that can hold Φ50 elements other than the 5-axis lens holder. If you attach a rod directly to the adapter, it can be used as a fixed beam expander holder. The adapter can also be fixed to the mirror holder (MHG-MP50-NL) or the cross-motion holder (TAT-16RO). For detailed specifications of the centering mechanism, please refer to the 5-axis lens holder (ALHN-50-5RO). The adapter for fixing to the He-Ne laser light source is available as an accessory for the beam expander (BE, LBED). For details, please refer to the laser beam expander. *When attaching a beam expander to the 5-axis lens holder (ALHN-5RO), please attach the beam expander to the opposite side of the screw ring. *It cannot be attached in the opposite direction. *When fixing the beam expander to a movable holder other than the 5-axis lens holder, the movable mechanism of the holder may not operate normally depending on the combination.
