SIGMAKOKI Fiber Optic Collimator Holder

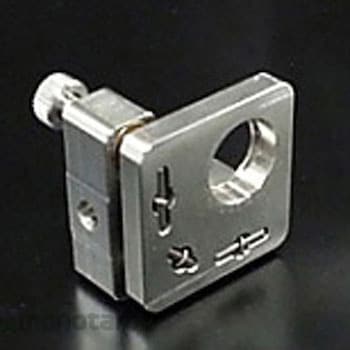

This holder fixes the optical fiber collimator housing (FC-12.7PC/APC) and adjusts the angle of the collimated beam emitted. This small holder is suitable for small housings and helps to make the optical system more compact. It can also be used as a Φ12.7mm mirror holder. It is designed to make it easy to attach and detach the optical fiber connector even when it is compact. The adjustment screw uses a 0.15mm fine thread, so the angle of the collimated beam can be fine-tuned with high resolution. The kinematic mirror holder (MHG-MP25-NL) can be used with FC-25.4 (PC/APC). *When used with an optical bench or rod stand, there will be a 6mm misalignment between the center of the optical fiber collimator and the mounting center (optical axis) of the holder. For this reason, we recommend using a post stand (PST) to fix the holder.
