SIGMAKOKI Chrome plate half mirror PSCH series

Sebelum PPN:
Rp3.599.900 - Rp19.999.900

Pilih jenis produk yang diinginkan

Nomor SKU Model Number Masa Persiapan Barang Harga Jumlah
Loading...
ask-button

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

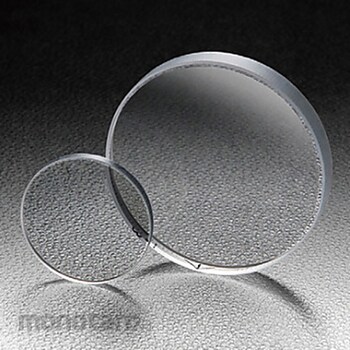

This half mirror can be used in a wide wavelength range from visible to infrared. Because it is a plate type, it does not become heavy like a cube even if the effective diameter is large. It can also be used as a half mirror to match the illumination system and observation optical system, such as a coaxial incident light observation system.
Feature
Specification
( Common Specifications)Material: BK7, Substrate Surface Accuracy: λ/10, Coating: Surface chrome film, Back surface anti-reflective film, Incident Angle: 45°, Transmittance: Average 30±5% (average value of P-polarized and S-polarized light), Branching Ratio (Reflection:Transmission): 1:1, Laser Power: 0.25J/cm2 (Pulse width 10ns, Repetition frequency 20Hz), Scratch-Dig: 40-20, Effective Diameter: 90% of outer diameter, (Individual Specifications)Applicable Wavelength: 400-700nm, Outer Diameter DIAD: DIA100mm, Thickness t: 10mm, Parallelism: <5''
