SIGMAKOKI Beam steering holder

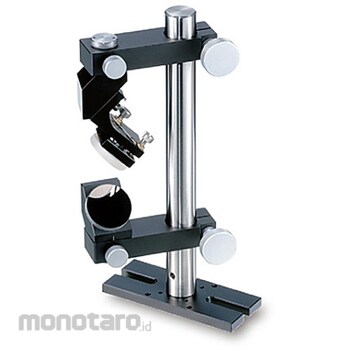

This holder is used to convert the beam of a stationary laser with a low optical axis to a high optical axis. The height of the optical axis of both mirrors can be adjusted, so it can be used with lasers and optical systems of various heights. The length of the pole (PO-20-***) sold separately can be selected to expand the adjustment range. The holder is used by gluing a mirror (Φ25mm or less, thickness 5mm) sold separately. In addition to the height of the optical axis of the mirror, the position of the mirror (on a circumference with a radius of 50mm from the pole) and the direction of the mirror can be roughly adjusted, and it can be firmly fixed with a clamp. The mirror on the output side has an adjustment screw, so the output beam angle can be adjusted. The photo shows a combination of a base plate (BSP-40100), a pole (PO-20-200), and two mirrors (TFA-30C05-10). We also offer a holder on the input side (lower side) with a mechanism for adjusting the mirror angle. *The polarization direction of the laser may change by 90 degrees depending on the direction of reflection of the two mirrors. *The upper and lower holders require a clearance height of 127 mm. *Please select the pole length according to the required optical axis height.
