THK Full-Ball LM Guide Global Standard

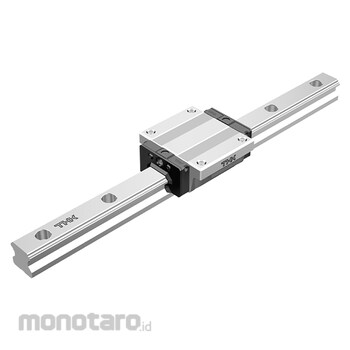

Image on this page only as Representative Image, Please check the specifications of each size for details

Balls roll in four rows of raceways precision-ground on an LM rail and an LM block, and end plates incorporated in the LM block allow the balls to circulate. Since retainer plates hold the balls, they will not fall out even if the LM block is removed from the LM rail (except models HSR 8X, 10X, and 12X). Each row of balls is placed at a contact angle of 45° so that the load ratings applied to the LM block are uniform in the four directions (radial, reverse-radial, and lateral directions), enabling the LM Guide to be used in all orientations. In addition, the LM block can receive a well-balanced preload, increasing the rigidity in the four directions while maintaining a constant, low friction coefficient. The low height of the LM block makes it highly rigid, achieving stable, high-precision linear motion.

Four-Way Equal Load


Each row of balls is placed at a contact angle of 45° so that the load ratings applied to the LM block are uniform in the four directions (radial, reverse-radial, and lateral directions), enabling the LM Guide to be used in all orientations.

High Rigidity


Since the balls are well balanced in four rows, a large preload can be applied and the rigidity in four directions can easily be increased.

Self-Adjustment Capability


The self-adjustment capability through front-to-front configuration of THK’s unique circular-arc grooves (DF set) enables a mounting error to be absorbed even under a preload, thus achieving highly accurate and smooth linear motion.

High Durability


Balls do not undergo differential slip, even under a preload or excessive biased load, allowing for smooth motion. Due to the product’s high wear resistance, it maintains long-term accuracy.

Stainless Steel Type also Available


A special type whose LM block, LM rail, and balls are made of stainless steel is also available.
