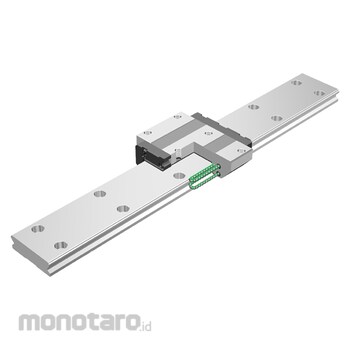

THK Caged Ball LM Guide Wide Rail

Image on this page only as Representative Image, Please check the specifications of each size for details

Balls roll in four rows of raceways precision-ground on the LM rail and LM block and are circulated by ball cages and end plates incorporated in the LM block.
A wide and highly rigid LM Guide that uses ball cages to achieve low noise, long-term maintenance-free operation, and high speed.

Wide with a Low Center of Gravity


The Model SHW, which has a wide LM rail and a low center of gravity, is optimal for locations requiring compactness a and large MC moment rigidity.

Four-Way Equal Load


Each row of balls is placed at a contact angle of 45° so that the rated loads applied to the LM block are uniform in the four directions (radial, reverse-radial, and lateral directions), enabling the LM Guide to be used in all orientations and in extensive applications.

Self-Adjustment Capability


The self-adjustment capability of the front-to-front configuration of THK’s unique circular-arc grooves (DF set) enables mounting error to be absorbed even under a preload, thus achieving highly accurate, smooth linear motion.

Low Dust Generation


Use of ball cages eliminates friction between balls and retains lubricant, thus achieving low dust generation.
