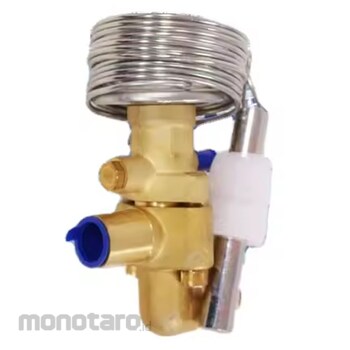

EMERSON Thermal Expansion Valve

Take-apart design consists of a power element, cage, and flange
46 bar maximum working pressure with XB power element
17 cage assemblies provide a wide capacity range (1.3 to 209 kW, R404A)
XB long life laser-welded stainless steel power element resists corrosion * Large diaphragm eliminates disturbances to the valve and
provides smoother and more consistent valve control over a wide range of operation
Constant superheat across a wide application range * Tailored charges for different applications
T-Series: universal expansion valve for evaporating temperature down to -45°C
ZZ-Series: expansion valves for evaporating temperature down to -100°C
L / 935-Series: desuperheating of two-stage compressors or hot gas bypass applications
Flanges: brazing ODF/ODM connection with straight-through and angle-style configuration
