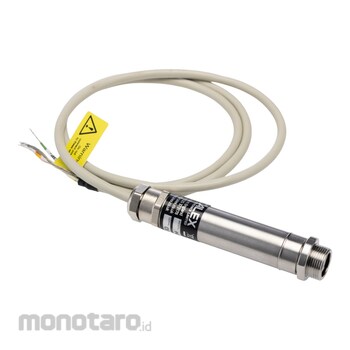

Calex mV Output Signal Infrared Temperature Sensor
#Grup produk P117263181
Spesifikasi
| Accuracy | ±1 % |
|---|---|
| Cable Length Output (m) | 1 |
| Cable Length Sensing Head (m) | 1 |
| Diameter (mm) | 18 |
| Emissivity setting | Fixed at 0.95 |
| Housing Material Sensing Head | 316 Stainless Steel |
| IP Rating Sensing Head | IP65 |
| Light Source | Infrared |
| Maximum Ambient Temperature (°C) | 70 |
| Maximum Supply Voltage (V) | 28 |
| Maximum Temperature Sensed (°C) | 250 |
| Minimum Temperature Sensed (°C) | 0 (Zero) |
| Mount Type | Screw |
| Product Type | Infrared Temperature Sensor |
| Response Time 90% (ms) | 240 |
| Sensor Type | mV Output Signal |
| Series | PC |
| Spectral Range (μm) | 8 to 14 |
| Standards Approvals | Conforms to industrial EMC Standards |
| Terminal Type | Cable |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
High quality, low cost, non-contact Infra-red temperature sensors suitable for measuring the temperature of inaccessible or moving objects and materials.
Feature
Fast response with high stability;Types available with air/water cooled housings;Quick and easy to install;Available as either two-wire or four-wire units;240 ms to 90% response time;Stainless steel housing;M16 x 1 mm mounting thread;Prewired 1 m cable connection;6 V dc minimum sensor voltage;0.95 emissivity;Temperature change varies by modelTwo-wire sensors transmit the target temperature as a 4-20 mA output and offer a simple solution for most non-contact temperature measurement applications.
Four-wire sensors transmit the target temperature as a 0-50 mV or thermocouple output, and in addition transmit the internal temperature as a 4-20 mA output. This second output can be used to ensure that the sensor is being operated within the correct ambient temperature limits and prevent damage caused by overheating or overcooling. It can also be used to give an approximate indication of the air temperature surrounding the sensor.
