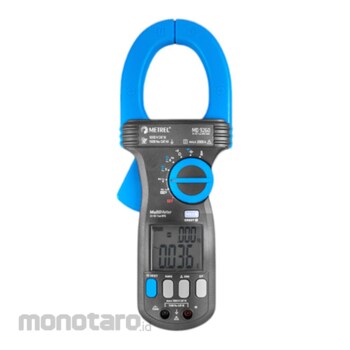

Metrel TRMS Photovoltaic Clamp Meter
#Grup produk P117259780
Spesifikasi
| APO Consumption (μA) | 10 Typical |
|---|---|
| APO Timing Idle (minute) | for 34 |
| Altitude Operating (m) | below 2000 |
| Display | 3-5/6 digits 6000 counts; 3-1/2 digits 1,999 counts for Hz |
| Jaw Opening (mm) | 55 mm max |
| Low Battery Below (V) | approx. 2.4 |
| Maximum Relative Humidity (%) | 80 for temperature up to 31 °C decreasing linearly to 50 relative humidity at 40 °C |
| Operating Temperature (°C) | 0 to 40 |
| Overload Protection | Clamp-on jaws 2000 A rms continuous; Voltage on terminals 1650 V DC / 1100 V AC rms; Other functions 1500 V DC / 1000 V AC rms |
| Power Consumption Typical (mA) | 14 for Current functions, and 5.2 for others |
| Power Supply (V) | 1.5 (AA Size (IEC LR6) battery X 2) |
| Safety | IEC/EN/BSEN/CSA_C22.2_No./UL 61010-1 Ed. 3.1, 61010-2-032 Ed. 4.0 to measurement categories CAT IV 1000 V |
| Sensing | True RMS |
| Storage Temperature (°C) | -20 to 60, < 80 % R.H. (with battery removed) |
| Temperature coefficient | 0.15 x (specified accuracy)/°C @ (0 °C –18°C or 28°C –40°C), or otherwise specified |
| Transient Protection (kV) | 12 (1.2/50 µs surge) |
| Update Rate | 5 per second nominal |
| Voltage (V) | 1500 DC |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
The MD 9260 is the first Metrel instrument to support measurements up to 1500 V with CAT III safety. Its voltage range and safety make it useful in highly demanding environments like solar power plants, wind power plants, or other high power environment using DC current. It has 2000 A AC/DC current range and can additionally measure resistance, capacitance, frequency and temperature – in short a well-rounded multimeter-style tool for use in power applications.
