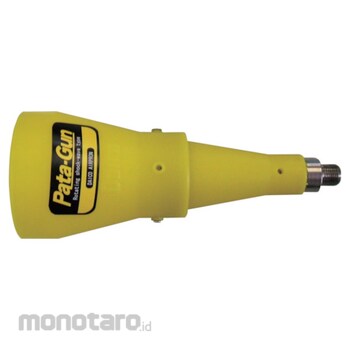

TPHATSU Rotational Wave Nozzle

The attached tube generates shock waves by rotating at 20 revolutions per second.The hammering effect caused by the shock wave instantly removes moisture and dust accumulated in depressions.The nozzle diameter is 40mm, allowing for treatment of a wide area at once, significantly reducing working time.Since the operating pressure is 0.45 MPa or less, it also helps save on electricity costs.The durability is approximately 3000 hours.At 40% to 60% of the operating pressure of a typical air gun, the effective air range is four times greater. Reduced working time and lower air consumption can result in electricity costs being less than one-third of conventional models.

Term of Use:
Use the pata gun by moving it horizontally, without swinging it.
The appropriate distance between the pata gun and the object is about 10-20 mm.
Use within the specified pressure range.
Clean the pata gun regularly.

Material:
Body: POM resin,
Internal rotor: POM resin,
Bearing: SUJ2 (high-carbon chromium bearing steel)
