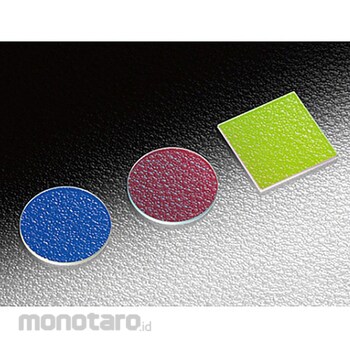

SIGMAKOKI Visible range dichroic mirror DIM-50S series

Sebelum PPN:
Rp4.099.900

Pilih jenis produk yang diinginkan

Nomor SKU Model Number Masa Persiapan Barang Harga Jumlah
Loading...
ask-button

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description
This is a mirror that separates the three primary colors of light (RGB). Since it uses a dielectric multilayer film with no absorption, it can use not only reflected light but also transmitted light.
Feature
Specification
( Common Specifications)Material: B270(R) (white glass) or BK7, Incident Angle: 45°, Applicable Wavelength: 400-700nm, Scratch-Dig: 60-40, Effective Diameter: Circle inscribed in a square 90% of the outer dimensions, (Individual Specifications)Transmission Band Wavelength (45° Incident): 535-700nm, Transmission Band Transmittance (45° Incident): >85%, Cutoff Band Wavelength (45° Incident): 400-450nm, Cutoff Band Transmittance (45° Incident): <5%, Half-Maximum Wavelength (50%): 490±10nm
