SIGMAKOKI Ultra-wideband dielectric flat mirror TFMS series

Sebelum PPN:
Rp9.999.900 - Rp24.999.900

Pilih jenis produk yang diinginkan

Nomor SKU Model Number Masa Persiapan Barang Harga Jumlah
Loading...
ask-button

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

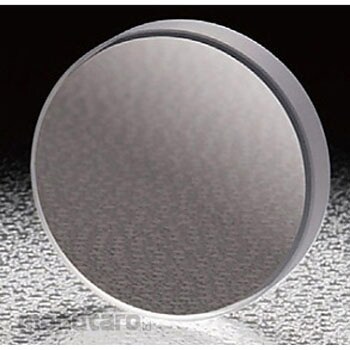

This is a highly reflective mirror that covers not only the visible range but also a wide range of ultraviolet and infrared bands. It can be used for spectroscopic experiments including invisible light and for the propagation of blackbody radiation spectrum.
Feature
Specification
[ Common Specifications] Material: BK7, Coating: Dielectric multilayer film, Incident angle: 45°±3°, Substrate surface accuracy: λ/10, Parallelism: <3′, Scratch-dig: 40-20, Effective diameter: 90% of outer diameter, Back surface: Polished surface, [Individual Specifications] Applicable wavelength: 400-2000nm, Outer diameter DIAD: DIA25.4mm, Thickness t: 5mm, Reflectance: >98% average, Laser power*: 0.5J/cm2*Laser pulse width 10ns, Wavelength 532nm, Repetition frequency 20Hz
