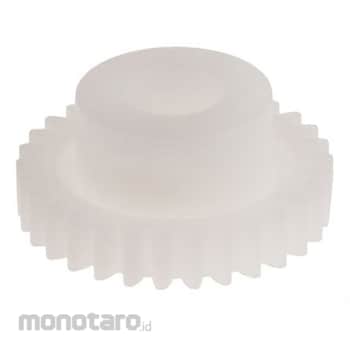

RS PRO Spur Gear POM Resin Module 0.5 Number of Teeth 30, Pitch Circle Diameter 15mm

Module = 0.5
Number of teeth = 30
Material = POM resin Bore diameter = 5mm
Pitch circle diameter = 15mm
Hub diameter = 10mm
Face width = 3mm

RS PRO POM Spur Gears. RS PRO spur gears provide the power your industrial machinery needs.
These gears are made from an injection molded acetal copolymer material, making them extremely strong and durable.
These gears offer excellent wear resistance and low friction, making them ideal for reducing the speed of rotating parts in industrial machinery and improving torque transmission.
Get ready to take your operation to the next level with RS PRO Spur Gears.
And more.

• Straight gear
• Straight Cut Gear
• Spur Wheel
• Spur Gear

. Features.

• Pressure angle: 20°
• meters
• Various tooth counts available
• Module: 0.5, 0.8, or 1
• Tensile strength: 94 N/ ^mm2
• Hardness (Rockwell R): 110 → 120

.Usage.

• Machine Tools
• transmission
• Speed Reduction

. Frequently Asked Questions.What is module? Module is expressed as d/N, which is the pitch diameter divided by the number of teeth.
This describes the size of the gear or defines the unit size of the gear based on the number of teeth.
Use this parameter to determine if your gear is compatible.
