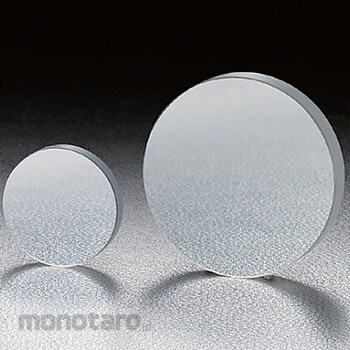

SIGMAKOKI Reasonably priced aluminum flat surface S-TFA series

Sebelum PPN:
Rp319.900 - Rp2.099.900

Pilih jenis produk yang diinginkan

Nomor SKU Model Number Masa Persiapan Barang Harga Jumlah
Loading...
ask-button

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description
It is ideal for applications that do not require low-scratch polishing for lasers, such as simple experiments and illumination optical systems. Other surface accuracy and reflectance are the same as aluminum mirrors (TFA) for lasers.
Feature
Specification
[Common Specifications for Reasonable Aluminum Flat Mirrors] Material: BK7, Coating: Al+MgF2, Parallelism: <3′, Incident Angle: 45°, Laser Power: 0.25J/cm2 (Pulse Width: 10ns, Repetition Frequency: 20Hz), Scratch-Dig: 60-40, Effective Range: Circle or ellipse inscribed in a rectangle of 90% of the outer diameter or 90% of the outer dimensions, [Individual Specifications] Length AxB: 10x15mm, Thickness t: 3mm, Substrate Surface Accuracy: λ/10, Back Surface: Sandblasted
