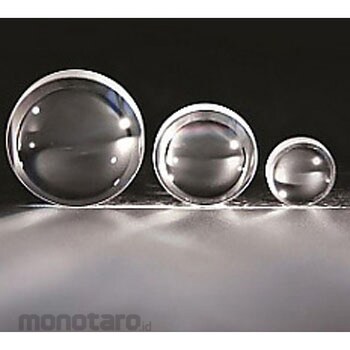

SIGMAKOKI Precision-polished aspheric lenses AGL series

Sebelum PPN:
Rp5.499.900 - Rp20.999.900

Pilih jenis produk yang diinginkan

Nomor SKU Model Number Masa Persiapan Barang Harga Jumlah
Loading...
ask-button

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description
This is a precision-polished aspheric lens that can focus a beam of incident plane waves to nearly the diffraction limit.
Feature
Specification
( Common Specifications)Material: S-LAH64, Refractive Index: 1.792 (546.1nm), 1.777 (780nm), Abbe Number νd: 47.37, Back Surface Shape: Flat, Eccentricity: < 3′, Coating: Uncoated, Effective Diameter: 90% of Outer Diameter, Scratch-Dig: 60-40, (Individual Specifications)Design Wavelength: 780nm, Outer Diameter DIAD: DIA25mm, Focal Length f: 24mm, Back Focus fb: 19.58mm, NA: 0.49, Edge Thickness te: 3.51mm, Center Thickness tc: 7.85mm, Shape Error: < 0.1 μm
