SIGMAKOKI Polka Dot Beam Splitter PDBS Series

Sebelum PPN:
Rp4.599.900 - Rp14.999.900

Pilih jenis produk yang diinginkan

Nomor SKU Model Number Masa Persiapan Barang Harga Jumlah
Loading...
ask-button

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

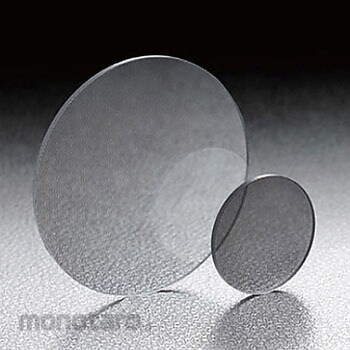

Polka dot beamsplitters are beamsplitters with a glass substrate coated with aluminum dots (polka dots). They have little incidence angle dependency and can be used over a wide range of wavelengths from ultraviolet to infrared.
Feature
Specification
[Polka Dot Beam Splitter Common Specifications] Material: Synthetic Quartz, Parallelism: <3′, Coating: Surface Al+MgF2, Back Uncoated, Recommended Incidence Angle: 0° to 45°, Usable Wavelength Range: 250 to 2200nm, Scratch-Dig: 80-50, Dot Pitch: 0.3mm, Effective Diameter: Circle excluding the outer 1.5mm, [Individual Specifications] Reflectance: Transmittance: 30:70, Outer Diameter DIAD: DIA25.4mm, Thickness t: 1.5mm, Transmittance (Wavelength 555nm, 0° Incidence): 70% (+0/-5)
