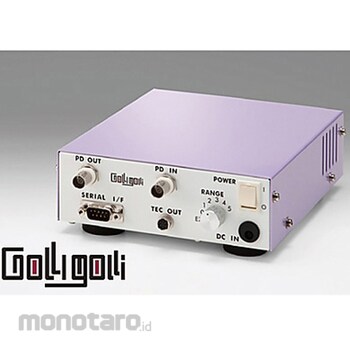

SIGMAKOKI Photodiode Amplifier PDA Series

Sebelum PPN:
Rp40.999.900 - Rp76.999.900

Pilih jenis produk yang diinginkan

Nomor SKU Model Number Masa Persiapan Barang Harga Jumlah
Loading...
ask-button

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description
This is a transimpedance amplifier that converts the weak output current of a photodiode into a voltage.
Feature
Specification
( Common Specifications)Operating temperature: 0°C to 40°C (excluding sensor section), Amplifier gain range 0: 10^5V/A, Amplifier gain range 1: 10^6V/A, Amplifier gain range 2: 10^7V/A, Amplifier gain range 3: 10^8V/A, Amplifier gain range 4: 10^9V/A, Amplifier gain range 5: 10^10V/A, Analog maximum output voltage (2kΩ load): 4V, Measurement gain error (@range 0-3): 2% of the maximum light received in the range, Measurement gain error (@range 4): 3% of the maximum light received in the range, Measurement gain error (@range 5): 4% of the maximum light received in the range, Cutoff frequency (@range 1): 3kHz, Cutoff frequency (@range 3): 30Hz, Cutoff frequency (@range 5): 0.3Hz, A/D converter conversion frequency: 16Hz, A/D converter resolution: 24bit (However, only 16 bits are effective), Temperature control temperature: -10°C (dedicated photodiode), Temperature control fluctuation temperature: 0.1°C (dedicated photodiode), Peltier output current: 1A (dedicated photodiode), [Individual specifications] Operating ambient temperature: 0°C to 40°C, Storage ambient temperature: -20°C to 60°C, Ambient humidity: 20 to 90%RH (non-condensing), External dimensions: (W)150 x (H)50 x (D)200mm (excluding protrusions), Interface: RS232C, Signal output connector, etc., Manufacturer's photodiode dedicated temperature control connector, Photodiode signal input connector (Note: PD and photodiode should be anode-grounded), Accessories: Dedicated AC adapter (AC100V), Light receiving surface size: -, Electrical and optical characteristics (ambient temperature 25°C) Sensitivity wavelength range: -, Electrical and optical characteristics (ambient temperature 25°C) Maximum sensitivity wavelength: -
