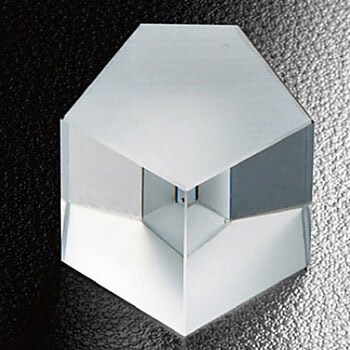

SIGMAKOKI Pentaprism PPB series

Sebelum PPN:
Rp8.399.900 - Rp12.999.900

Pilih jenis produk yang diinginkan

Nomor SKU Model Number Masa Persiapan Barang Harga Jumlah
Loading...
ask-button

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description
By reflecting the image twice with a mirror, the mirror-symmetrical reflected image is converted into an upright image that is the same as the object. Before cameras were digitalized, a pentaprism was used to bend the light beam from the object at a right angle so that the image would not be mirror-symmetrical. It is also used as a right-angle reference for laser levels.
Feature
Specification
[Pentaprism Common Specifications] Material: BK7, Base Surface Accuracy: λ/4, Angle Tolerance: ±3′, Scratch-Dig: 40-20, Coating: Al Coat + Black Coating, MgF 2 Single Layer Anti-Reflective Coating, Effective Diameter: Circle inscribed in a square 90% of dimension A, [Individual Specifications] A: 15mm, C: 16mm
