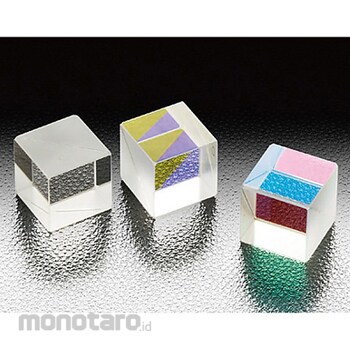

SIGMAKOKI Non-polarizing cube half mirror NPCH series

Sebelum PPN:
Rp7.699.900 - Rp15.999.900

Pilih jenis produk yang diinginkan

Nomor SKU Model Number Masa Persiapan Barang Harga Jumlah
Loading...
ask-button

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description
This half mirror can achieve an accurate 1:1 reflection/transmission ratio even for lasers or linearly polarized light sources. The reflective surface is made of a dielectric multilayer film and transparent adhesive, and the input and output surfaces are made of anti-reflective coating, so there is little loss of light and the incident light can be used efficiently.
Feature
Specification
( Common Specifications)Material: BK7 Synthetic Quartz, Substrate Surface Accuracy: λ/4, Transmitted Beam Deflection: <5′, Coating: Beveled Surface Dielectric Multilayer Film, Side 4 Surfaces Anti-Reflection Film, Incident Angle: 0°, Branching Ratio (Reflection:Transmission): 1:1, Laser Power: 0.3J/cm2 (Pulse Width 10ns, Repetition Frequency 20Hz), Scratch-Dig: 20-10, Effective Range: Circle inscribed in a square with 85% of the outer dimensions (A=B=C≤7mm: Circle inscribed in a square with 80% of the outer dimensions), (Individual Specifications)Applicable Wavelength: 1300nm, A=B=C: 15mm, Material: BK7, Transmittance: 50±5%
