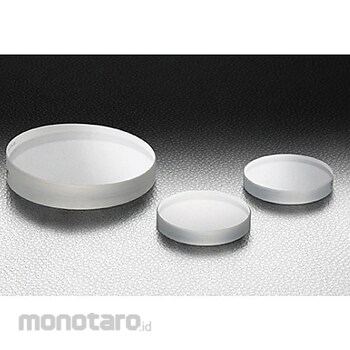

SIGMAKOKI Low scattering parallel plane substrate

Sebelum PPN:
Rp6.799.900 - Rp24.999.900

Pilih jenis produk yang diinginkan

Nomor SKU Model Number Masa Persiapan Barang Harga Jumlah
Loading...
ask-button

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description
By applying special polishing to the parallel flat substrate, the surface roughness is reduced to 0.2 nm (Ra) or less. It can be used as a substrate for mirrors for high-power lasers and X-rays, where the effects of scattering from the substrate are a concern.
Feature
Specification
[ Common Specifications] Material: Synthetic Quartz UV-compatible CaF2 MgF2, Surface Roughness: <0.2nm (Ra), Effective Diameter: 90% of Outer Diameter, [Individual Specifications] Type: Parallel Plane, Outer Diameter DIAD: DIA30mm, Thickness t: 5mm, Material: MgF2, Surface Accuracy: λ/10, Parallelism: <5′′, Scratch-Dig: 20-10

Ulasan Produk

Tidak ada ulasan
