SIGMAKOKI Kinematic top operation mirror holder LMHB series

Sebelum PPN:
Rp1.199.900 - Rp15.999.900

Pilih jenis produk yang diinginkan

Nomor SKU Model Number Masa Persiapan Barang Harga Jumlah
Loading...
ask-button

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

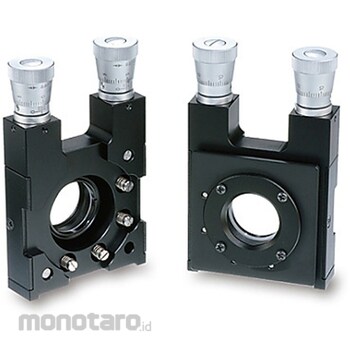

This is a kinematic mirror holder that allows you to operate the mirror from above or beside the optical system when optical elements or devices are close to each other in front of or behind the mirror, or when it is difficult to reach into the optical path for adjustment.
Feature
Specification
( Common specifications)Main material: Aluminum, Surface treatment: Black anodized, (Individual specifications)Applicable element size: DIA50.8mm, Applicable element thickness: 2-16mm, Adjustment range tilt: ±1.8°, Adjustment range rotation: ±1.8°, Micro display equivalent tilt: Approx. 0.004°/DIV, Micro display equivalent rotation: Approx. 0.004°/DIV, Coarse adjustment resolution tilt: -, Coarse adjustment resolution rotation: -, Fine adjustment resolution tilt: -, Fine adjustment resolution rotation: -, Fine adjustment screw display equivalent tilt: -, Fine adjustment screw display equivalent rotation: -, Weight: 0.75kg
