SIGMAKOKI Grand Taylor Prism GYP Series

Sebelum PPN:
Rp16.999.900 - Rp44.999.900

Pilih jenis produk yang diinginkan

Nomor SKU Model Number Masa Persiapan Barang Harga Jumlah
Loading...
ask-button

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

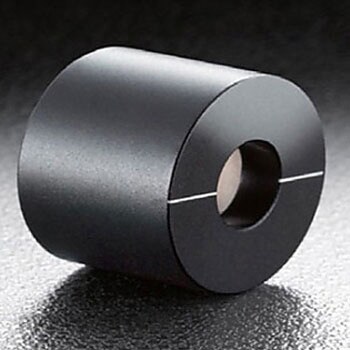

This is the polarizing prism with the shortest overall length. It has low transmission loss and a high extinction ratio of 5 x 10^-5 or less. We offer a calcite type for use from the visible range to the infrared, and an α-BBO crystal type for use in the ultraviolet range.
Feature
Specification
( Common Specifications)Material: α-BBO, Calcite, Beam Declination: <3′, Wavefront Accuracy: λ/4, Coating: MgF 2 Single-Layer Anti-Reflective Coating, Laser Power: 1J/cm2 (Pulse Width 10ns), Scratch-Dig: 20-10, Protective Frame Material: Aluminum (Surface Treatment: Black Anodized), (Individual Specifications)Applicable Wavelength: 300-700nm, Extinction Ratio: <5x10^-6, DIAA: DIA20mm, DIADxL: 38x29mm
