SIGMAKOKI Dielectric multi-layer cube split beamter CSM series

Sebelum PPN:
Rp5.399.900 - Rp7.199.900

Pilih jenis produk yang diinginkan

Nomor SKU Model Number Masa Persiapan Barang Harga Jumlah
Loading...
ask-button

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

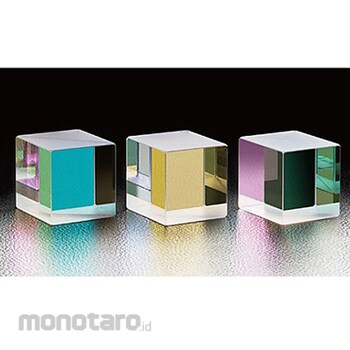

This is a cube-shaped beam splitter with a reflectance and transmittance of 1:2 or 1:3. In combination with a half mirror, it can be used to create a 3- or 4-branch optical system that distributes the amount of light equally.
Feature
Specification
[Common Specifications for ] Material: BK7, Substrate Surface Accuracy: λ/4, Applicable Wavelength: 400-700nm, Transmitted Beam Deflection: <5′, Coating: Dielectric Multilayer Film on Beveled Surfaces, Anti-reflective Coating on 4 Sides, Incident Angle: 0°, Incident Light Polarization Condition: Unpolarized, Linear or Circular Polarization at 45 Degrees, Laser Power: 0.3J/cm2 (Pulse Width 10ns, Repetition Frequency 20Hz), Scratch-Dig: 10-20, Effective Range: Circle inscribed in a square 85% of the outer dimensions, [Individual Specifications] Reflection:Transmission: 1:3, A=B=C: 10mm, Transmittance (550nm)*: 75±5%, Transmittance (400.700nm)*: <90% *Average value of P-polarization and S-polarization
