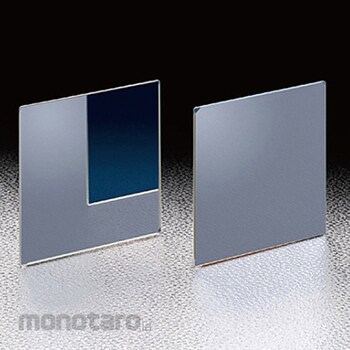

SIGMAKOKI Cold mirror CLDM images

Sebelum PPN:
Rp1.299.900 - Rp2.599.900

Pilih jenis produk yang diinginkan

Nomor SKU Model Number Masa Persiapan Barang Harga Jumlah
Loading...
ask-button

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description
Cold mirrors reflect only visible light and transmit infrared light, and can be used to separate sunlight and other light rays into visible light and infrared light (heat rays).
Feature
Specification
( Common Specifications)Material: BK7, B270(R) (CLDM-50S), Incident Angle: 45°, Applicable Wavelength: 400-2000nm, Scratch-Dig: 80-50, 60-40 (CLDM-50S), Effective Diameter: Circle inscribed in a square with 90% of the outer dimensions, (Individual Specifications)Outer Diameter DIAD: DIA25.4±0.5mm, Thickness t: 3.3±0.3mm, Transmission Band Wavelength (45° Incident): 800-2000nm, Transmission Band Transmittance (45° Incident): >75%, Cutoff Band Wavelength (45° Incident): 400-700nm, Cutoff Band Transmittance (45° Incident): >95%, Half-Maximum Wavelength (50%): 760±10nm
