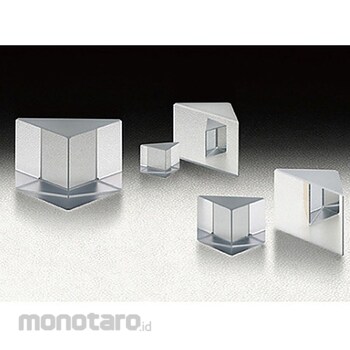

SIGMAKOKI 45° Right Angle Prism RP Series

Sebelum PPN:
Rp469.900 - Rp24.999.900

Pilih jenis produk yang diinginkan

Nomor SKU Model Number Masa Persiapan Barang Harga Jumlah
Loading...
ask-button

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description
This is an uncoated prism that can be used for various purposes such as critical angle total reflection and wavelength dispersion. In addition, various coatings can be applied to this prism, so you can create a prism optical element for the wavelength you use.
Feature
Specification
[<45° Right Angle Prism> Common Specifications] Material: BK7 (Refractive Index nd=1.517), Synthetic Quartz (Refractive Index nd=1.458), Base Material Surface Accuracy: λ/2, Angle Accuracy: ±3′ (90° and 45°), Scratch-Dig: 20-10, Effective Range: Circle or Ellipse inscribed in a rectangle of 90% of the outer dimensions, [Individual Specifications] Material: BK7, A=B: 2mm
