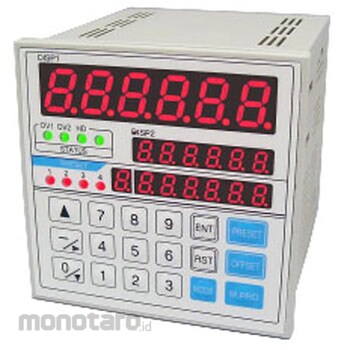

UINICS Indicator
#Grup produk P117007512
Spesifikasi
| AC Power Input (V) | 85~264(50/60Hz) |
|---|---|
| Alarm Output | Photo-mos relay a contact output, 4 stages Rated load current: 0.12 A (resistive load) Load voltage: 140 VAC, 30 VDC * Only 3 stages can be used when using 2 points of integrated synchronous pulse output |
| Display | Display can be selected from 1 to 4 digits after the decimal point. |
| Display Accuracy | Instantaneous: ± 0.2% FS ± 1 digit (at 23 ° C ± 5 ° C, 30 minutes after power-on) Integration: ± 0.3% FS ± 1 digit (at 23 ° C ± 5 ° C, 30 minutes after power-on) |
| Display Range | Totalization: -99999 to 999999, Instant: -9999 to 9999 |
| Display Sampling (s) | Display averaged over 0.1 to 10 seconds (can be set arbitrarily) |
| File backup | Write each set value / integrated value to FRAM (within 100,000 rewrites for approximately 10 years) |
| Mass (g) | About 515 |
| Operating Humidity (%RH) | 30-80 (no condensation) |
| Operating Temperature Range (°C) | -10~50 |
| Outer dimensions, Width W x Height H x Depth D (mm) | 96x96x115 |
| Power Consumption (VA) | About 22 or less |
| Power Supply | DC + 12V (± 10%) 100mA MAX (stabilized) output |
| Protection Class | IP66 equivalent |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Set Contents | Main unit, instruction manual |
| Temperature Characteristics | ±100ppm/°C(-10~50°C) |
| Type | Instantaneous / integrated measurement |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
It is an analog input indicator (panel meter, indicator). Instantaneous value and integrated value can be displayed at the same time. 2 inputs (A input, B input) are possible, and it is also possible to display 2 instantaneous values and 2 integrated values. Flow meter, flow sensor (electromagnetic flow meter, Kalman vortex flow meter, ultrasonic flow meter, Koriori type flow meter, positive displacement flow meter, mass flow meter, thermal mass flow meter, differential pressure type flow meter, Ophiris type flow meter It can be connected to a meter, etc.) to measure the instantaneous flow rate and integrated flow rate. Front drip-proof specification (equivalent to IP66). Compliant with the RoHS directive.
Feature
Specification[Scaling (instantaneous)] Set the instantaneous display value at maximum input, [Scaling (integration)] Set the maximum integrated display value per hour
