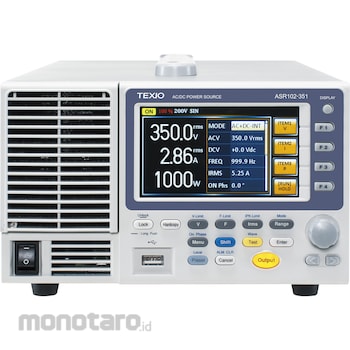

TEXIO TECHNOLOGY Compact AC/DC Power Supply
#Grup produk P116976774
Sebelum PPN:
Rp61.999.900 - Rp82.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Communication Output | RS-232C: EIA/TIA-232D compliant, connected with 3-wire cross cable, D-SUB 9 pin male, no flow, data length: 7/8, parity: none/O/E, STOP: 1/2, speed: 1200, 2400, 4800, 9600 (initial setting), 19200, 38400, 57600, 115200 |
|---|---|
| Display | 4.3 inch color LCD |
| External Connection | Input: Interlock, test start, test end Output: PASS, FAIL, 5VTTL level, input pull-up 47kΩ, output impedance 100Ω, output: power ON/output ON/limit status/sequence synchronization/Busy, input: output ON/output OFF/Sequence start/end/stop/branch |
| Frequency Range | 47~63Hz, 40.00~999.9Hz (AC mode) 1.00~999.9Hz (AC+DC mode) |
| Interface | GP-IB (Gtype only): SCPI-1993, IEEE 488.2 compliant, dedicated connector (requires connection with GTL-258), LAN, USB host, USB device, RS-232C (Rtype, Gtype), GP-IB ( Gtype only) |
| Mass (kg) | About 10.5 |
| Measuring Item | Effective voltage, average voltage, peak voltage, effective current, average current, I Peak Hold current, power, active power, apparent power, power factor, crest factor |
| Mode | AC(INT),DC(INT),AC+DC(INT),AC(EXT),AC+DC(EXT),AC(ADD),AC+DC(ADD),AC(SYNC),AC+DC(SYNC) |
| Number of Phases | Single-phase two-wire |
| Output Waveform | Sine wave, square wave, triangle wave, direct current, arbitrary waveform |
| Power Factor | 0.95typ (100V range), 0.9typ (200V range) |
| Protective Function | OCP (over current protection), OTP (over temperature protection), OPP (over power protection), FAN fail (fan abnormality) |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Resolution | Voltage measurement: 0.1V, current measurement: 0.01A (RMS/AVG), 0.1A (PEAK) |
| Size | 213(W)x124(H)x480(D) (excluding protrusions) |
| Wave Form | Arbitrary: fixed length 4096 points x 16 waveforms |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
The ASR series is a compact AC/DC power supply with an output capacity of 500VA/1000VA, employing an inverter system. It supports a wide range of AC waveforms, including numerous output modes and measurement functions, harmonic analysis mode, sequence and simulation test functions, and an arbitrary waveform mode. Furthermore, it offers nine different output modes through combinations of AC + DC, internal + external signals, and more. Standard interfaces include USB/LAN/RS-232C, with models also available that include an additional GP-IB interface. Equipped with a color LCD display, it is a multi-functional, intuitive, and easy-to-use compact AC/DC power supply. Using the external input and arbitrary waveform functions, it can handle larger voltage and current signals that are difficult to handle with a standalone signal generator.
Warning
Calibration certificate and traceability diagram includedFeature
SpecificationPresets: 30, remote sensing: compensated up to 5% of rating, total harmonic distortion (THD): 0.5% or less, voltage measurement accuracy PEAK: 45Hz to 65Hz and DC: ±(|2%ofreading|+1V)(100V range), ±(|2%ofreading|+2V)(200V range), voltage measurement accuracy RMS/AVG: 45Hz to 65Hz and DC: ±(0.5%ofreading+0.3V)(100V range), ±(0.5%ofreading +0.6V) (200V range), 40Hz to 999.9Hz: ±(0.7%ofreading+0.9V)(100V range), ±(0.7%ofreading+0.9V)(200V range), current measurement accuracy PEAK: 45 Hz to 65 Hz and DC: ±(|2 % of reading| + 0.2 A) (100 V range), ±(|2 % of reading| + 0.1 A) (200 V range), current measurement accuracy RMS/AVG: 45 Hz to 65 Hz and DC: ±(0.5 % of reading + 0.04 A)(100V range), ±(0.5 % of reading + 0.02 A)(200V range), 40 Hz to 999.9 Hz: ±(0.7 % of reading + 0.08 A) (100V range), ±(0.7 % of reading + 0.04 A) (200V range), harmonic measurement: effective voltage up to the 40th order of the fundamental wave, effective current, voltage range: 90 to 264 Vac
