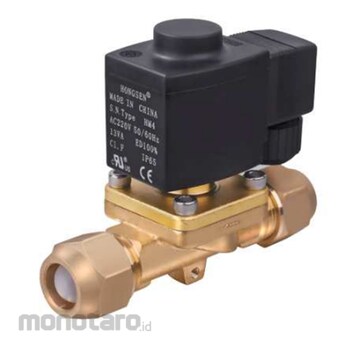

Model HV solenoid valve is a one-step on/off or two-step on/off solenoid valve, which is applicable to one-way flow.
Model HV solenoid valve is used on the piping of liquid, suction gas or hot air on the freezing, cold storage and air conditioner units.
The valve seat and seals of Model HV solenoid valve have excellent sealing performance.
Model HV solenoid valve could be supplied with coils of varied voltage.
Model HV solenoid valve could be supplied in assembly or in separate components, that is, the valve body and the coil could be supplied separately.
Hongsen Solenoid Valve
#Grup produk P116971557
Spesifikasi
| AP Minimum (bar) | 0.05 |
|---|---|
| Connection (inch) | 3/8 |
| Connection Type | ODF |
| Flow Rate (m³/hour) | 0.8 |
| MOPD Liquid MOP | 31 (close) |
| Maximum Working Pressure (bar) | 45 |
| Model | HV8M3T |
| Structure | Servo-Operated |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
Kv value: The flow rate (m³/hour) of water of density 1t/m³ passing through the solenoid valve with the pressure differential of 100 KPa.The MOPD of gaseous medium is about 1 bar higher than that of liquid.Feature
Only NC type solenoid valve is available.Coils of various power supply are available for choice.
For 9W solenoid, MOPD is up to 3.1 MPa.
For clamping type solenoid valve, it is simple and just need one screwdriver in installation.
It is suitable to various application in freezing, cold storage and air conditioner units.
The sealed coil has a long service life and could be used in adverse circumstances.
Certification: ISO 9001 · QS (XK-015-00246) · CE UL
