Spesifikasi
| Applicable Dimensions (mm) | Drill length: 200 (maximum) |
|---|---|
| Clearance Angle (°) | 1~15 |
| Drill Flank Shape | Plane (Rake) / Cone (Cone) |
| Holder | ER11: Includes 9 collets (DIA2.0 to DIA6.0, 1 each in 0.5mm increments) / ER32: Includes 14 collets (DIA7.0 to DIA20.0, 1 each in 1.0mm increments) |
| Main Unit Dimensions, Width W x Depth D x Height H (mm) | 540x640x34 |
| Mass (kg) | 45 |
| Memory Function | 160 items |
| Offset Angle (°) | 3rd corner: 10-35 |
| Power Consumption (W) | 300 |
| Power Input (V) | AC100/220(50/60Hz) |
| Range of Application | Core pressure: 0-50% |
| Suitable Drill Diameter (mm) | Straight drills: 2.0-13.0 / Lummed drills: 2.0-13.0 / Leading drills: 3.0-12.0 / Flat drills: 3.0-20.0 |
| Thinning | X/SX/R Thinning |
| Tip Angle (°) | 90/118~140/180 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Informasi Produk
Description

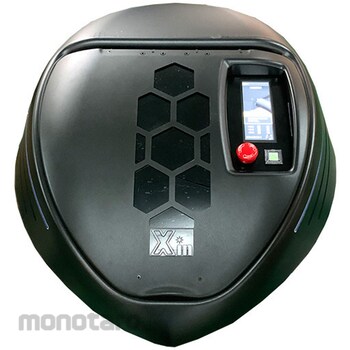

World's first! Flat drill with automatic sharpening function.
Stable accuracy reduces product defects.
Reduced costs by cutting outsourcing expenses.
This significantly reduces the cost of purchasing drills during the lead time when outsourcing.
With a fully automated system, anyone can ensure consistent polishing quality.
Changing settings is made easier with the use of illustrations.
The built-in naming function makes data management easy.
The built-in light allows you to check the work status.
*This product cannot be delivered to private residences.
*This machine uses a dry grinding method, so if accumulated chips are left unattended, there is a risk of ignition. To prevent ignition and make cleaning of chips easier, please use this machine in conjunction with a dust collector.
*The dust collection hose connection port is Φ70mm.
Stable accuracy reduces product defects.
Reduced costs by cutting outsourcing expenses.
This significantly reduces the cost of purchasing drills during the lead time when outsourcing.
With a fully automated system, anyone can ensure consistent polishing quality.
Changing settings is made easier with the use of illustrations.
The built-in naming function makes data management easy.
The built-in light allows you to check the work status.
*This product cannot be delivered to private residences.
*This machine uses a dry grinding method, so if accumulated chips are left unattended, there is a risk of ignition. To prevent ignition and make cleaning of chips easier, please use this machine in conjunction with a dust collector.
*The dust collection hose connection port is Φ70mm.
Feature
SpecificationGash: G (for flat drills)
