The piston rod is plated.
Both pushing and pulling are hydraulically operated.
Equipped with a dust seal to remove debris adhering to the piston rod.
The pulling force is approximately half the lifting force.
The E20 comes standard with a cap. The E30 is a saddle-mounted type.
Mounting screws are provided at the bottom.
The cylinder has mounting threads on its outer diameter.
If using the saddle upside down, please use a screw-in type saddle.
The allowable lateral load is 1/40 of the lifting force.
Double-acting H (hydraulic return) type

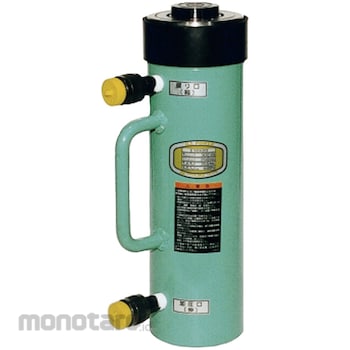

Osaka Jack E-type power jack
#Grup produk P116916736
Spesifikasi
| Base Screw Length N (mm) | 22 |
|---|---|
| Base Thread Diameter c (mm) | M45x2 |
| Cap Outer Diameter (mm) | o:50 |
| Color Thread Diameter a (mm) | M85x2 |
| Color Thread Length j (mm) | 40 |
| Coupler Connection Size m | NPT3/8 |
| Cylinder Inner Diameter d (mm) | 65 |
| Cylinder Outer Diameter (mm) | 88 |
| Dimension G (mm) | 38 |
| Dimension T (mm) | 10 |
| Height Of Coupler L (mm) | 37 |
| Lifting Force (kN) | 200 |
| Minimum Height (mm) | 785 |
| Pressure Receiving Area (cm²) | 33,18 |
| Rod Diameter (mm) | 48 |
| Rod Thread Diameter b (mm) | M36x2 |
| Rod Thread Length K (mm) | 23 |
| Stroke (mm) | 500 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Specification* Gravitational force kN (tf): 90 (9) * Lifting force (tf): 20
