The piston rod is plated.
Mounting screws are provided on the bottom (except for the E5S1.5).
Includes a dust seal to remove debris adhering to the piston rod (except for E5S1.5).
The cylinder outer diameter has mounting threads (except for E5S1.5).
The saddle is a snap-on type.
We kept the minimum height as low as possible.
If using the bike upside down, please use a screw-in type saddle (except for the E5S1.5).
The allowable lateral load is 1/20 of the lift force.
Single-acting S (spring return) type

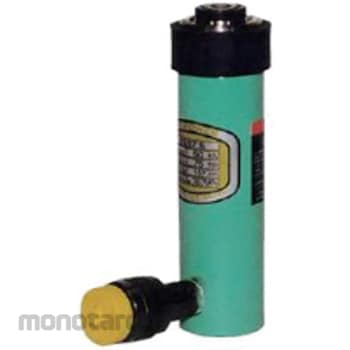

Osaka Jack E-type power jack
#Grup produk P116916675
Spesifikasi
| Applicable Pump | Manual operation: TWA-0.3, TWA-0.7 |
|---|---|
| Base Thread Diameter c (mm) | 2-M6x10L |
| Color Thread Diameter a (mm) | M42x1.5 |
| Color Thread Length j (mm) | 23 |
| Coupler Connection Size m | NPT3/8 |
| Cylinder Inner Diameter d (mm) | 30 |
| Cylinder Outer Diameter (mm) | 42 |
| Dimension S (mm) | 28 |
| Dimension T (mm) | 5 |
| Head Diameter (mm) | o:25 |
| Height Of Coupler L (mm) | 19 |
| Lifting Force (kN) | 50 |
| Minimum Height (mm) | 214 |
| Pressure Receiving Area (cm²) | 7,07 |
| Required Oil amount (mL) | 90 |
| Rod Diameter (mm) | 26 |
| Rod Thread Diameter b (mm) | M20x2 |
| Rod Thread Length K (mm) | 13 |
| Stroke (mm) | 127 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
SpecificationLift (tf): 5
