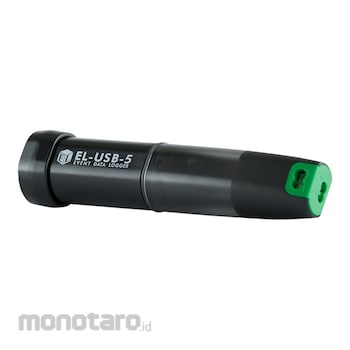

Lascar Event Data Logger

The Lascar EL-USB-5 standalone data logger can record events, record state changes and count events. Over 32,000 events or state changes can be recorded or over 32,000 timed intervals in count per mode. It is also possible to use V free contacts. Instead of measuring an external voltage, the data logger applies a voltage across the screw terminals and detects when the input closes. The logger can record events at speeds of up to two times per second and state changes at speeds of up to four times per second. In counting modes, the logger can operate at speeds of up to 100 counts per second. The user can easily set up the logger and view the downloaded data by plugging the data logger into a PC’s USB port and using the available free downloadable EasyLog software. Data can then be graphed, printed and exported to other applications.
