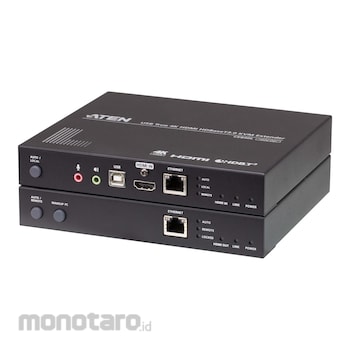

ATEN USB True 4K HDMI HDBaseT

HDBaseT 3.0 to supports True 4K HDMI, audio, RS232, Ethernet, and USB signal transmission across a long distance via a single Cat 6A cable (ATEN 2L-29330 Cat 6A Cable recommended) or above with no compression and zero latency
Superior video quality to supports HDR10+ and video resolutions up to True 4K (3840 x 2160 @ 60 Hz 4:4:4 and 4096 x 2160 @ 60 Hz 4:4:4) over 100 m
HDBaseT™ long reach mode up to 1080P over 150 m*
Long reach mode switch to switches between HDBaseT™ Standard and long reach modes in a snap*
Dual console operation to control the system via the USB keyboard, mouse and HDMI monitor consoles installed on both the local and remote ends
Active console selectable via the pushbutton on the remote unit and local unit - enables USB-based signal control from either the remote or local end, with LEDs indicating the USB control mode
Flexible 4 x USB 2.0 extension to each of the remote unit and the local unit contains 2 ports for USB keyboard and mouse connection and 2 ports for other USB peripheral connection
Supports individual stereo audio and HDMI audio formats including LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio
HDCP2.3 and 2.2 compliant
Supports widescreen formats
Built-in 8KV/15KV ESD protection
Firmware upgradable
No software or driver installation required
Rack-mountable

Note:
1. The long reach mode is only supported by CE840 using firmware version v1.0.064m or later.
2. When the long reach mode switch is switched and turned on, the CE840 will reboot itself to activate the long reach mode.
