Video Input Interfaces 8 x HDMI Type A Female (Black)
Impedance 100 Ω
Max. Distance 5.0 m / 4K@60Hz (4:4:4)
Video Output Interfaces 8 x HDMI Type A Female (Black)
Max. Distance 5m / 4K@60Hz (4:4:4)
15m / 1920 x 1200
Impedance 100 Ω
Video
Max. Pixel Clock 600 MHz
Max. Resolution Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)
Max. Data Rate 18 Gbps( 6 Gbps Per Lane)
Compliance HDMI (3D, 4K, Deep Color)
HDCP 2.2 Compatible
Consumer Electronics Control (CEC)
Control
RS-232 Connector: 1 x DB-9 Female (Black)
Baud rate and protocol:
Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No
IR 1 x Mini Stereo Jack Female (Black)
Ethernet 1 x RJ-45 Female
EDID Settings EDID Mode: Default / Port 1 / Remix / Customized
(EDID Wizard Support)
Connectors
Power 1 x 3-Prong AC Socket
Carton Lot 1 pc
Power Consumption AC110V:38.1W:179BTU/h
AC220V:37.8W:177BTU/h
Note:
● The measurement in Watts indicates the typical power consumption of the device with no external loading.
● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

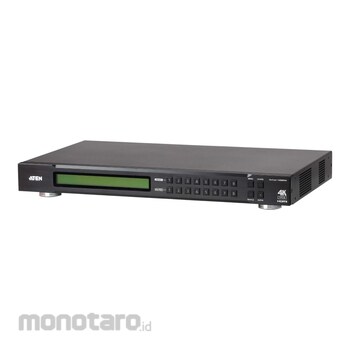

ATEN HDMI Matrix Switch
#Grup produk P116871503
Sebelum PPN:
Rp7.699.900 - Rp57.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Housing | Metal |
|---|---|
| Humidity (%) | 0 to 80 RH (non-condensing) |
| Operating Temperature (°C) | 0 to 40 |
| Storage Temperature (°C) | -20 to 60 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
1x VM0808HB 8 x 8 True 4K HDMI Matrix Switch1x Power Cord
1x IR Remote Control
1x IR Receiver
1x Rack Mounting Kit
1x User Instructions
Connects any of 8 HDMI sources to any of 8 HDMI displays
Supports True 4K resolutions up to 4096 x 2160 @ 60Hz (4:4:4)
Supports HDR10+
Multiple Control Methods to system management via front-panel pushbuttons, IR remote, RS-232 control, and Web GUI/Telnet via Ethernet connections
View and control via ATEN Video Matrix Control App in a swift and agile way
EDID Expert™ to selects optimum EDID settings for smooth power-up, high-quality display and use of the best video resolution across different screens
Signaling rates up to 6 Gbits for flawless true 4K output
Supports Dolby True HD and DTS HD Master audio
HDMI (3D, Deep Color, 4K) and HDCP 2.2 compatible
Supports Consumer Electronics Control (CEC)
Power-on Detection to switches to the next powered-on source when one source is powered off
ESD protection for HDMI
Supports ATEN’s LockPro™ HDMI cable lock for secure HDMI cable connections
Firmware upgradeable
Rack mountable (1U design)
