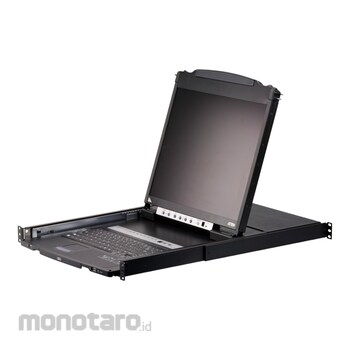

ATEN Dual Rail LCD KVM Switch

1x CL5808 KVM Switch with Standard Rack Mounting Kit
2x Custom KVM Cable (VGA, USB, PS/2; 1.8 m/6 ft)
1x Custom Console Cable (VGA, USB, PS/2; 27 cm/0.88 ft)
1x Firmware Upgrade Cable(1.8 m/6 ft)
1x Power Cord
1x Extension Kit
1x User Instructions

Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
Integrated KVM console with 19" LED-backlit LCD in a Dual Rail housing
Space saving technology - up to two consoles (one bus) control up to 8 computers
Daisy-chain up to 31 additional units* to control up to 256 computers from two consoles (one bus)
Dual Interface - supports computers and console with PS/2 or USB keyboards and mice
Additional hot-pluggable USB mouse port on front panel (also functions as a USB peripheral port)
LCD module rotates up to 120 degrees for a more comfortable viewing angle
Console Lock - enables the console drawer to remain securely locked away in position when not in use
Multiplatform support - Windows, Linux, Mac, and Sun
Supports multimedia USB keyboards for Windows, Mac and Sun
Auto PS/2 and USB interface detection
Keyboard and mouse emulation (PS/2 and USB) for smooth switching and simultaneous booting of multiple computers even when the console focus is elsewhere
Extra console port - manage computers in the LCD KVM switch from an external console (monitor, USB keyboard, and USB mouse)
Superior video quality - supports resolutions up to 1280 x 1024 @ 75 Hz
No software required - convenient computer selection via front panel pushbuttons, hotkeys, and multilingual on-screen display (OSD) menus
Auto-senses station's position on daisy chained installations; no need for manual dip switch setting; front panel led indicates station's position
Port names automatically reconfigured when station sequence is changed
Two level password security - only authorized users can view and control computers
LCD power button helps save energy and prolong display's life
Supports one administrator and four user accounts with separate profiles
Auto Scan mode enables continuous monitoring of user-selected computers
Broadcast support - commands from the keyboard can be broadcast to all available computers on the installation
Hot pluggable - add or remove computers without having to power down the switch
Beeper on/off via hotkey and OSD
Firmware upgrades to all the chained KVM switches at the same time via the daisy chain cable
Optional rack mount kits available including easy installation options
Keyboard Language support: English (US), English (UK), French, German, German (Swiss), Greek, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Traditional Chinese and Turkish

Note: With compatible KVM Switches:ACS1208A,CS1708A,CS1716A
