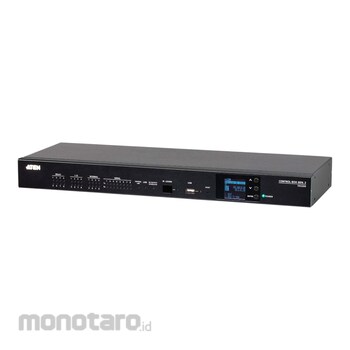

ATEN Control Box

Memory
SDRAM 2GB
Flash 8GB

Interfaces
Serial • 2 x Programmable Bi-directional RS-232/422/485 Port
(2 x 5-Pole Terminal Block Connector, configurable via pin assignments);
to Baud Rate: 300 to 115200 (default: 9600);
to Data Bit: 8 (default) or 7;
to Stop Bit: 1 (default) or 2;
to Parity: None (default), Even or Odd;
to Flow Control: None (default) or RTS/CTS
• 6 x Bi-directional RS-232 Port
(6 x 3-Pole Terminal Block Connector);
to Baud Rate: 300 to 115200 (default: 9600);
to Data Bit: 8 (default) or 7;
to Stop Bit: 1 (default) or 2;
to Parity: None (default), Even or Odd
IR/Serial • 8 x Programmable IR / Uni-directional RS-232 Port
(4 x 4-Pole Terminal Block Connector);
IR: TTL level (0 to 5 V)
to Carrier Frequency: 10KHz~455KHz;
Serial: Uni-directional RS-232 (0 to 5 V)
to Baud Rate: 300 to 115200 (default: 9600);
to Data Bit: 8 (default) or 7;
to Stop Bit: 1 (default) or 2;
to Parity: None (default), Even or Odd
Relay • 8 x Relay Channel (4 x 4-Pole Terminal Block Connector);
• Normally open, isolated Relays;
• Contact Rating: Max 24 VDC, 2A
I/O • 8 x Programmable Digital Input / Output Channel
(2 x 5-Pole Terminal Block Connector);
Digital Output:
300 mA sink from 24 VDC
Digital Input:
to VDC Mode
Input Voltage Range: 0 to 24 VDC;
Programmable Range: 1 to 24 VDC;
to Dry Contact Mode
Pull-up 2k ohms to + 12 VDC
Ethernet • 2 x RJ-45 Female, 10/100/1000Base-T
• Supported Protocol: ARP, ICMP, TCP/IP, DHCP, HTTPS, SSH
Control LAN:
• Support DHCP Server
• DHCP mode - The following default IP settings will be used if no IP is assigned within 30 seconds:
IP: 192.168.0.60
Subnet Mask: 255.255.255.0
LAN:
• DHCP mode - The following default IP settings will be used if no IP is assigned within 30 seconds:
IP: 192.168.1.60
Subnet Mask: 255.255.255.0
VDC • 4 x 12 VDC Output Port (2 x 4-Pole Terminal Block Connector);
• Power Supply: 12 VDC, 2A Max (shared by 4 ports)
USB 1 x USB Type A
Switches
Power 1 x On/Off Switch
IR Learning 1 x IR Receiver LED
Panel Spec
Size 1.6"
Resolution 128x64
Pushbuttons
Select 3 x Pushbuttons (Up, Down, Enter)
Reset Button 1 x Semi-recessed Pushbutton
Power Consumption AC110V:5.7W:139BTU/h
AC220V:6.8W:144BTU/h

Note:
● The measurement in Watts indicates the typical power consumption of the device with no external loading.
● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Power
Maximum Input Power Rating 100-240 V AC, 50-60 Hz, 1A
