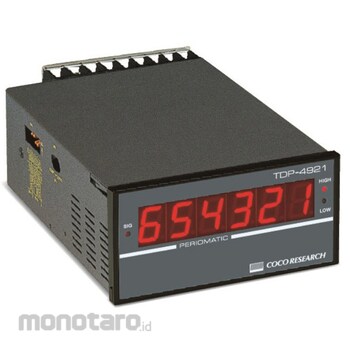

COCO RESEARCH Universal Speedometer Speedometer

Specification
Analog: 0-10V; Comparator output/ON resistance, update time, output hold function, response time, output connector: 50Ω or less; Display update time/Selectable by synchronizing with analog output update time; Comparator reset function; 3ms (max); Terminal block 7.62mm pitch M3 free terminal; Comparator output section/Number of outputs, number of setting digits, polarity setting: 2 points (HIGH, LOW) or 6 digits (HIGH, LOW); 0=+, 1=- (Set in program mode); Sensor power output: +12V±10%, 150mA max; Dynamic predictionTM: 9 levels (including continuous prediction and period hold); Update time (ms): 0.5; Setting value storage: Non-volatile memory (EEPROM); Measurement mode/Calculation rate: Frequency meter mode/Period meter mode/Set the display value for the input frequency. Input frequency rate: 0.00001 - 999999 (Hz); Display rate 0.00001 - 999999 *Input connector terminal block: 7.62mm pitch M3 free terminal screws *Input pulse width: H and L levels 100 ns or more *Input signal/input circuit/input withstand voltage: Logic signal/approx. 5kΩ, +5V pull-up/+30V/-25V *Input withstand voltage/input connector: ±30V/terminal block 7.62mm pitch M3 free terminal screws *Display update time/display accuracy: 0.1 to 99.9 seconds (can be set in 0.1 second increments in program mode)/5 ppm ±1 digit @ 23°C *Display range/polarity indication/overcurrent indication/zero indication: -199999 to 999999/"-" lights up when rotating in reverse/OL indication/leading zero suppression
