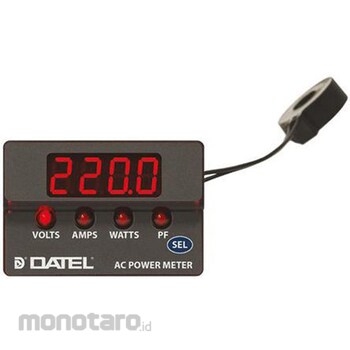

Murata Power Solutions Power Meter Murata Power Solutions LED 4-Digit 36.22 x 22.1 mm ACM20 Series

Specification
*Height: 22.1mm *Width: 36.22mm *Display Type: LED *Number of Digits: 4 *Number of Phases: 1 *Depth: 23.11mm *Character Height: 9.14mm *Accuracy: ±1% *Operating Temperature Min: 0°C *Operating Temperature Max: +60°C *Series: ACM20 *ACM20 - Four-Function AC Power Meter. The ACM20 series AC power meters display the most important measurements for powered equipment: voltage, current, active power (watts), and power factor. A front-panel selector switch offers two modes: a fixed reading for one of four parameters or a continuous reading that cycles through all four. The miniature size makes it ideal for UPS power supplies, power strips, laboratory equipment, alternative energy, and other products requiring precise monitoring of AC power. . 4-function AC power meter Large 9.2 mm bright red LED display Displays AC voltage, current, watts and power factor (or Hertz) Two display modes: continuous, auto-cycling and fixed True-RMS readings of complex voltage and current waveforms Different versions available: - 10 A, power factor reading, part numbers: 823-3595 823-3595 - 32 A, power factor reading, part numbers: 823-3586 823-3586 - 100 A, power factor reading, part numbers: 823-3592 823-3592 - 10 A, power factor reading, part numbers: 823-3598 823-3598 - 32 A, power factor reading, part numbers: 823-3589 823-3589 - 100 A, power factor reading, part numbers: 823-3602 823-3602 Integrated current transformer for easy installation Universal 85 to 264 V ac (47 to 63 Hz) operating range One-piece polycarbonate housing fits 0U and 1U racks Surface mount design takes up minimal space on panel surface
