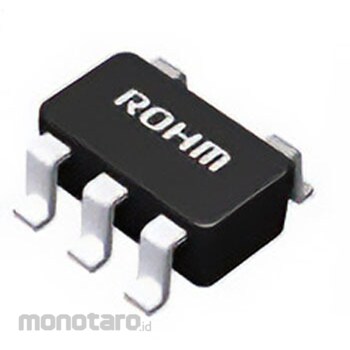

ROHM ROHM Logic Gate, Inverter Schmitt Trigger, Surface Mount, 1-Input, BU4S584G2-TR

Specification
*Logic type: Inverter Schmitt trigger*Mounting type: Surface mount*Number of elements: 1*Number of inputs per gate: 1*Schmitt trigger input: Yes*Package type: SSOP*Number of pins: 5*Logic circuit: CMOS*Input type: LS-TTL, L-TTL*Maximum operating supply voltage: 16 V*Maximum high-level output current: -3.4 mA*Maximum propagation delay time @ Maximum CL: 230 ns @ 50 pF*Min. operating supply voltage: 3 V*Maximum low-level output current: 3.4 mA*Maximum operating temperature: +85 °CpF*ROHM's logic gate series is compatible with the 4S and 4000B series, supports high withstand voltages, and offers a wide lineup with a wide range of functions. It can be used for a variety of applications. Low power consumption Wide supply voltage: 3 to 16 (18) V High input impedance High fan-out Direct drive of L-TTL2 input and LS-TTL1 input Pin compatible with 4S*4000B series Functionally compatible with 4S*4000B series Wide range of package lineup
